Cooling is the single longest stage in the injection molding cycle — accounting for roughly 70 to 75% of total cycle time. Yet in many factories, the cooling tower is selected almost as an afterthought: matched to the previous unit's size, or picked from a catalog based on a rough flow rate estimate. The result is a system that either runs too warm, forcing extended cooling times and lower throughput, or that is oversized and wastes energy every shift.

This guide covers the fundamentals of injection molding cooling, explains what each part of the machine actually needs from the cooling water circuit, and walks through a systematic approach to selecting the right cooling tower for your production setup.

Why Injection Molding Cooling Accounts for 75% of Your Cycle Time

Cooling is the one stage in the injection cycle that cannot be compressed through process adjustment alone — its duration is governed by the physical properties of the material, not operator settings.

The five stages of an injection cycle — and where time actually goes

A standard injection molding cycle consists of five sequential stages: plasticizing, filling, packing, cooling, and ejection. Of these, cooling is by far the longest. In typical production conditions:

The implication is direct: any reduction in cooling time translates almost one-to-one into shorter cycle time and higher output. A 10% improvement in cooling efficiency on a 30-second cycle saves 2-2.5 seconds per shot — thousands of seconds per shift at scale.

Why cooling takes so long

The limiting factor is not the cooling water temperature — it is the rate at which heat can be conducted out of the plastic through the mold steel, into the cooling channels, and away from the mold surface. Plastic is a poor thermal conductor. A wall section of 3mm polypropylene may require 8-12 seconds of contact with a 15 degrees C mold surface before it is rigid enough to eject without distortion.

Cooling water temperature, flow rate, and the condition of the mold cooling channels all directly affect this rate. A stable, correctly sized injection molding cooling system keeps the mold at its target temperature consistently — preventing the creeping temperature rise that occurs in under-cooled production and extending shot-to-shot cycle time as the shift progresses.

The challenge of injection molding is not producing the first good part — it is replicating the exact same conditions across the next ten thousand cycles. A 3 degree C rise in water temperature, a partially blocked mold cooling channel, a mold temperature controller tripping during the night shift — any variation in the water supply can cause dimensional drift or surface defects across an entire batch, often hundreds of parts before anyone notices. The real value of a cooling system is not simply cooling water down. It is keeping every shot's cooling conditions identical to the first.

What happens when injection molding cooling is undersized

The consequences of inadequate cooling show up at different timescales:

• Immediate (shift level): mold temperature rises progressively. Operators extend cooling time or reduce shot speed to compensate. Cycle time increases 5-15% by end of shift.
• Short term (days to weeks): dimensional inconsistency and surface defects (sink marks, warping, residual stress) as mold temperature varies between shots.
• Medium term (months): scale and mineral deposits in open-loop cooling water block mold channels. Flow rate drops, cooling deteriorates further — often without any visible warning until a quality escape occurs.
• Long term: hydraulic oil overheating causes accelerated wear on seals and pump components. Machine downtime increases; maintenance cost per part rises.

The Four Cooling Points in an Injection Molding Facility

An injection molding facility has four distinct cooling points, each with different temperature requirements, flow rate demands, and consequences when cooling is inadequate. A well-designed cooling system must address all four — missing any one of them is one of the most common reasons a cooling tower ends up undersized in practice.

1. Mold cooling

   Mold cooling is where the 75% figure comes from. Cooling channels machined into the mold core and cavity carry circulating water that extracts heat from the solidifying plastic. The appropriate cooling medium depends on the target mold temperature, which varies by resin type — cooling tower water (supply at approximately 28–35°C) covers the majority of standard thermoplastic applications, with mold temperatures typically in the 30–60°C range.

   Resin	Typical Mold Temp.	Cooling Medium	Notes
   PP / PE / HDPE	30–60°C	Cooling tower water	Most common cooling tower application
   POM (Acetal)	60–90°C	Cooling tower water	Upper range may need TCU assist
   ABS	25–70°C	Cooling tower water	Chiller used for high-gloss / thin-wall variants
   PBT	40–60°C	Cooling tower water	Higher end transitions to TCU
   PA6 / Nylon	60–90°C	Cooling tower water + TCU	Tower supplies TCU; not direct to mold

   Resins requiring mold temperatures above 80°C — such as PC, high-temperature PA grades, or PEEK — are typically served by water- or oil-type TCUs, which in turn draw cooling water from the tower or a dedicated chiller circuit.

   Flow rate requirements vary by mold size and shot weight. Across all configurations, mold cooling accounts for the largest single share of a facility’s total cooling water demand — typically 50–60% of system total.

2. Hydraulic oil cooler

   Hydraulic injection machines use high-pressure oil circuits to drive the injection unit, clamping mechanism, and ejection system. This generates significant heat in the hydraulic fluid. Most machines specify a maximum hydraulic oil temperature of 45-55 degrees C; above this threshold, viscosity changes affect injection pressure consistency and accelerate seal wear.

   Cooling water is circulated through a plate or shell-and-tube heat exchanger to maintain hydraulic oil temperature. The heat load from hydraulics is roughly proportional to machine clamping tonnage — a 200-ton machine produces substantially more hydraulic heat than a 50-ton machine running at the same cycle time.

   It is worth noting that as servo-driven and all-electric injection machines become more prevalent, hydraulic heat loads have decreased significantly — some all-electric machines require no hydraulic oil cooling at all. As a result, mold cooling accounts for an increasingly large share of total thermal load, and the range of peripheral equipment requiring cooling (mold temperature controllers, chillers, hot runner controllers) has grown more complex. All of these must be factored into cooling system planning.

3. Barrel throat water jacket

   The hopper throat and upper barrel section require cooling to prevent plastic pellets from softening prematurely before reaching the intended melting zone. If the throat temperature is too high, pellets form a bridge that stops material flow — a condition known as 'bridging' — stalling production immediately.

   The water jacket is a relatively low flow rate, low heat-load circuit, but its role is disproportionately important to production continuity. A cooling failure at the throat stops the machine entirely.

4. Auxiliary equipment (mold temperature controllers, chillers, hot runner controllers)

   Injection molding facilities are commonly equipped with a wide variety of auxiliary equipment, and their specific cooling requirements must be integrated into the system sizing calculations alongside the injection molding machines (IMMs). Chillers are responsible for delivering low-temperature cooling water to the mold cooling circuits, while mold temperature controllers maintain the mold at precise temperatures and high-temperature cooling setpoints. Hot runner controllers manage manifold and gate temperatures, and dehumidifying dryers pre-treat hygroscopic materials (such as Nylon and ABS) prior to molding. As the requirements for molding precision and part quality continue to rise, the thermal load from these components will account for an increasingly larger share of the total system demand, and it can no longer be treated as a secondary consideration during system sizing.

Four Cooling Points: Requirements and Risk Overview

A Three-Step Sizing Method: From Heat Load to Tower Selection

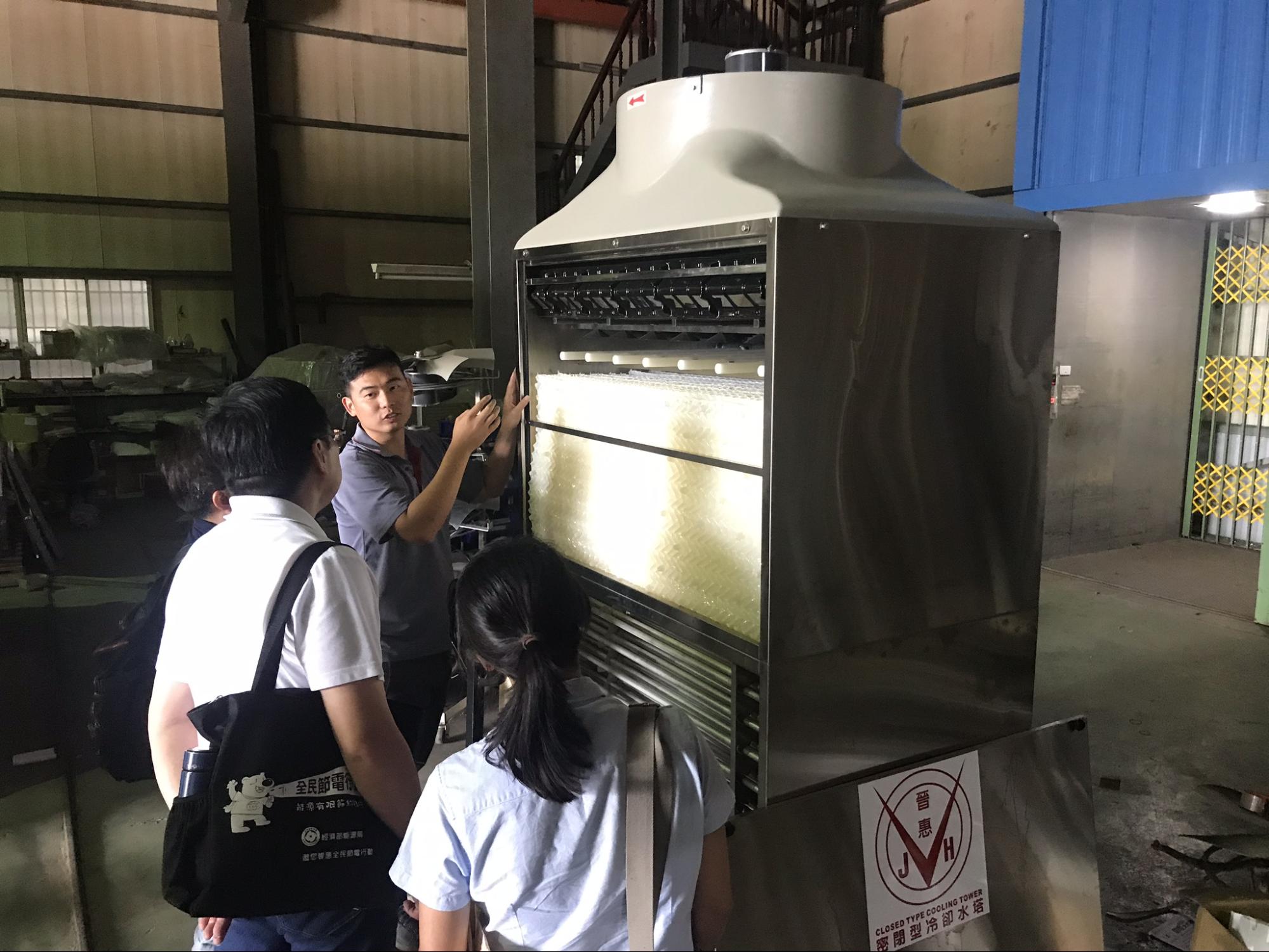

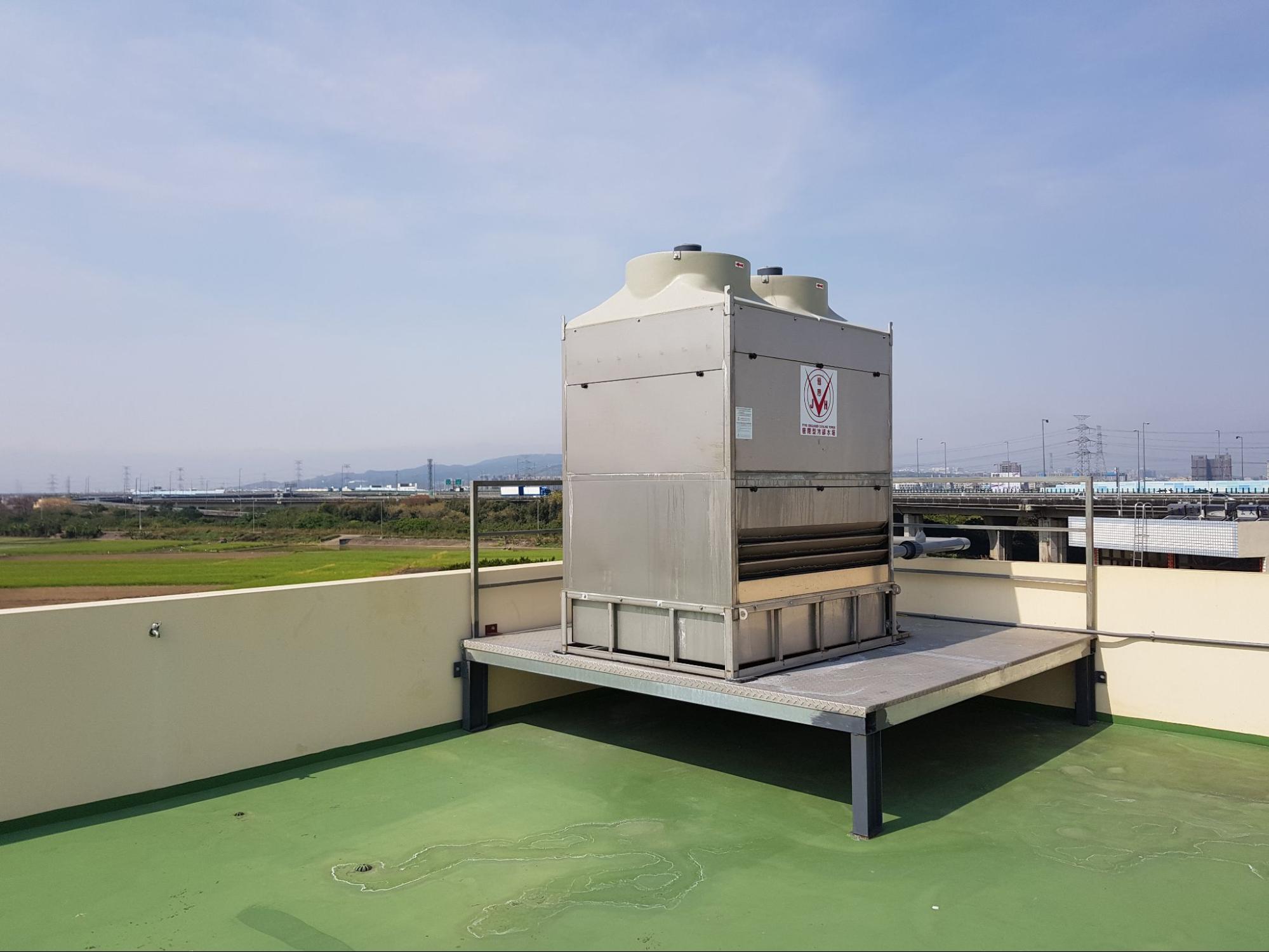

Selecting the right cooling tower starts not from a catalog, but from your facility's actual heat load — worked through three systematic steps.

Step 1 — Survey heat load sources

Accurate sizing begins with a complete list of every piece of equipment that uses cooling water in the facility. For each item, you need three data points: flow rate (L/min), inlet water temperature (T1), and outlet water temperature (T2). Summing these across all equipment gives you the facility's total cooling demand in kcal/hr — the number the cooling tower must be able to handle under peak load conditions.

Cooling heat load in an injection molding facility comes from three distinct dimensions: material characteristics (melt temperature and specific heat vary significantly across plastics), machine components (barrel throat jacket, hydraulic oil cooler, and mold cooling channels each follow different calculation methods), and peripheral equipment (mold temperature controllers, chillers, and hot runner controllers must all be included). These three dimensions cannot be combined into a single figure or covered by a generic reference table.

In practice, most factories do not have flow meters installed, and older machines often lack complete documentation. This is why Linkcooling conducts a component-by-component heat load assessment at the start of every project — rather than leaving customers to estimate from incomplete data.

Step 2 — Select the right model and performance standard

The core question in cooling tower selection is not whether a unit holds CTI certification — it is whether the equipment can run stably over the long term under your factory's actual conditions, and whether it is practical to maintain.

Linkcooling's HCT-J Series holds CTI STD-201 certification (CTI Certification Directory), making it the appropriate choice for facilities where documented performance specifications are required — for example, supplier audits by international OEM customers, or quality system requirements in medical or precision parts manufacturing (HCT-J Certification).

For production-focused injection molding operations, the selection priorities are often different: consistent uptime, low maintenance burden, and minimal risk of cooling interruptions. This is the design focus of the SCT Series. Both product lines address distinct facility needs — the right choice depends on matching the equipment to your actual operating conditions and maintenance capability.

Step 3 — Plan for long-term performance and capacity growth

Open-loop cooling towers are lower in initial cost, but the direct exposure of process water to air introduces a scaling problem that is particularly severe in injection molding. Mold cooling channels are narrow — typically 8-12mm diameter. Scale deposits of even 1-2mm are enough to meaningfully reduce flow rate and create hot spots that cause differential shrinkage, warping, and surface defects.

Factories that have switched to closed-loop systems consistently report reduced mold maintenance frequency and more stable cycle times. For precision parts or multi-cavity tooling operations, the investment is typically recovered within the first production year through lower scrap rates and fewer mold-cleaning shutdowns.

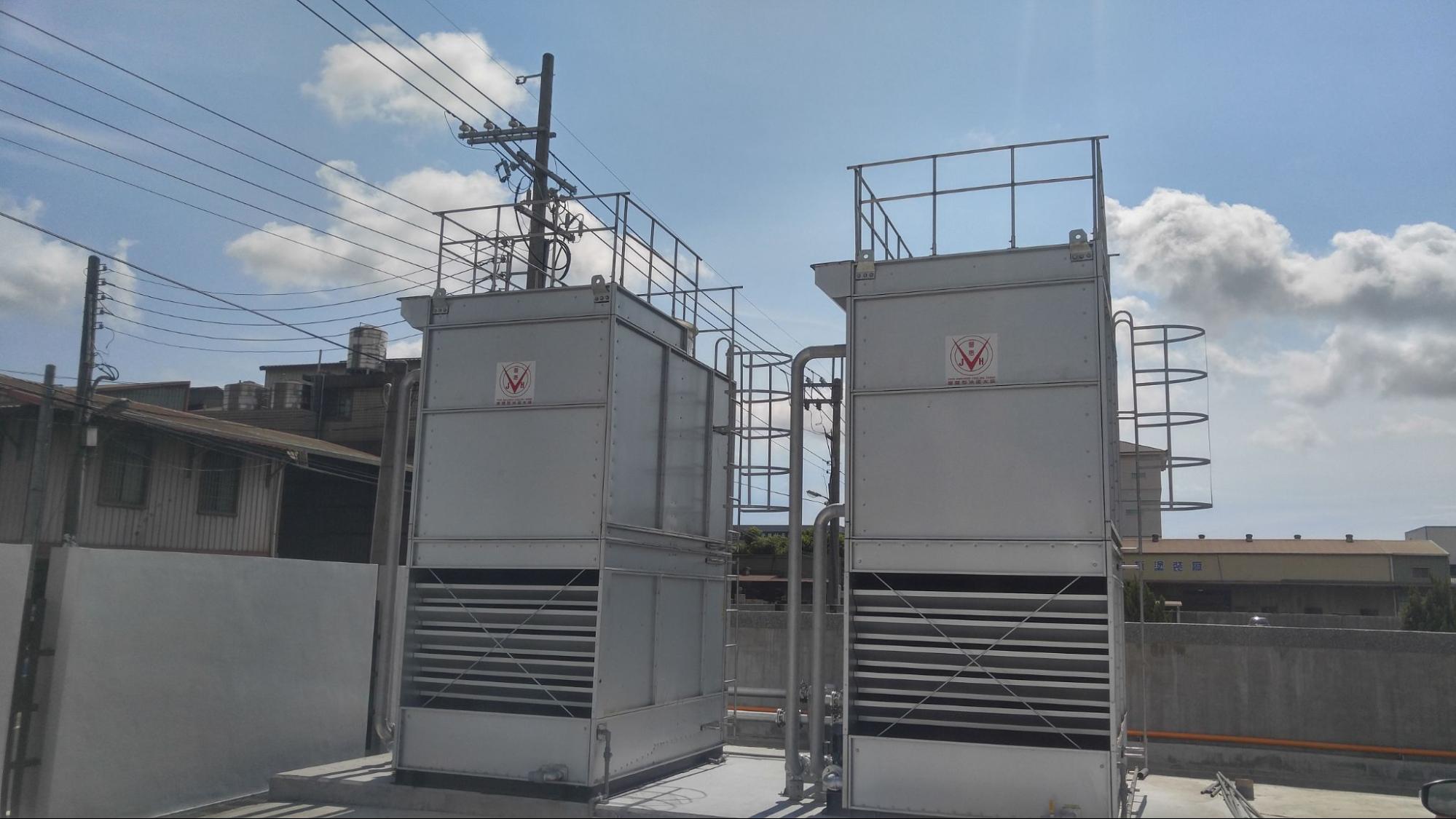

On the capacity planning side, parallel configuration is the key design decision for getting ahead of future growth — but it is only possible with closed-loop cooling towers. Open-loop towers cannot be run in parallel due to basin water level interference. Two closed-loop units in parallel deliver the same total capacity as one large unit, with the added benefit of continued operation during maintenance. When the factory grows, a third unit is added to the existing manifold — no downtime, no replacement.

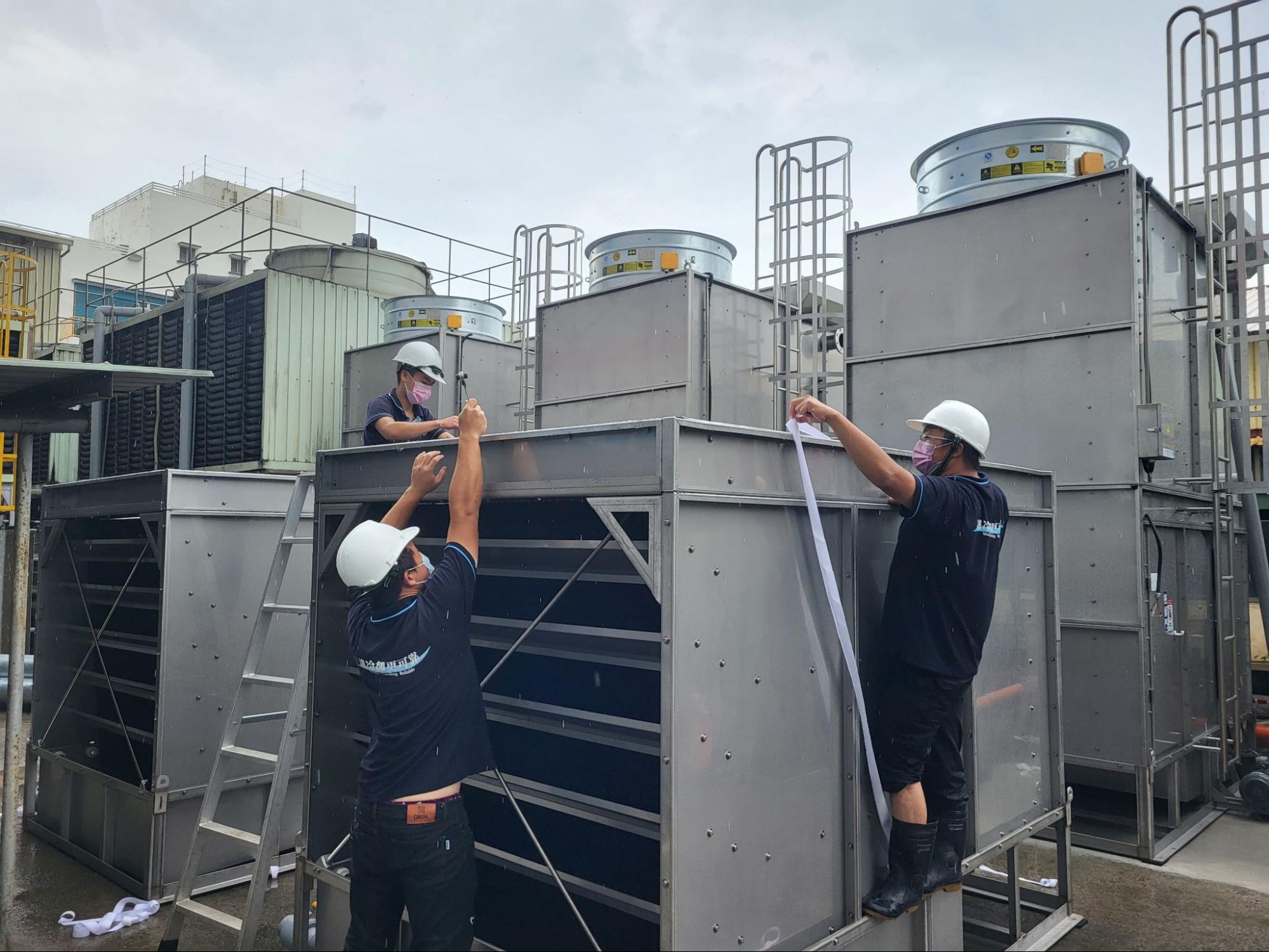

Two installation factors are also worth noting. On water temperature stability: in Taiwan's climate, seasonal temperature swing can reach 14 degrees C or more between winter and summer — installing a temperature control unit on the supply circuit stabilises inlet temperature year-round. On pipe insulation: long pipe runs in outdoor or high-temperature areas should be insulated to prevent ambient heat gain from affecting supply water temperature.

What the Difference Looks Like in Production

The three steps provide a logical framework — but real factory conditions are rarely as clean as a framework suggests. The following example shows what the gap between a systematic approach and a rule-of-thumb selection actually looks like in production numbers.

What good sizing looks like vs. what most factories actually do

In most injection molding factories, cooling tower replacement follows a simple rule: match the size of the old unit, or let the salesperson recommend based on machine count and total tonnage. This approach often works — until the factory adds machines, changes materials, or moves to higher-cavitation tooling. At that point the cooling system becomes the constraint, cycle times start stretching, and by the time the root cause is identified as cooling, the tower has typically been running at the edge of its capacity for months.

A more reliable approach starts with the machine list, not the tower size. Once total heat load is established from the survey data, selecting the appropriate cooling tower model becomes a straightforward calculation — and the result is a system matched to actual demand, with defined headroom for growth.

For injection molding factories with multiple machines of mixed tonnage and material types, the survey form approach is particularly useful. Rather than relying on rule-of-thumb estimates, plant engineers fill in a structured table of machine ratings and operating conditions. The completed data is used to calculate total facility heat load directly, yielding a tower selection based on measured demand rather than approximation.

A representative example: an eight-press PP container facility in central Taiwan had been running an open-loop cooling tower for six years. Operators reported that by the third hour of each shift, cycle times had stretched from an initial 24 seconds to 27-28 seconds as the mold temperature crept upward — a pattern the team had accepted as normal. A heat load survey revealed the facility was running at 118% of the tower's rated capacity during peak production. After switching to a pair of closed-loop SCT units in parallel, mold temperature variance narrowed from plus or minus 6 degrees C to plus or minus 1.5 degrees C across a full shift, and cycle time held stable at 24 seconds from first shot to last. The closed circuit also eliminated the quarterly mold-channel descaling procedure that had previously required a half-day of downtime per tool.
